Product Description:

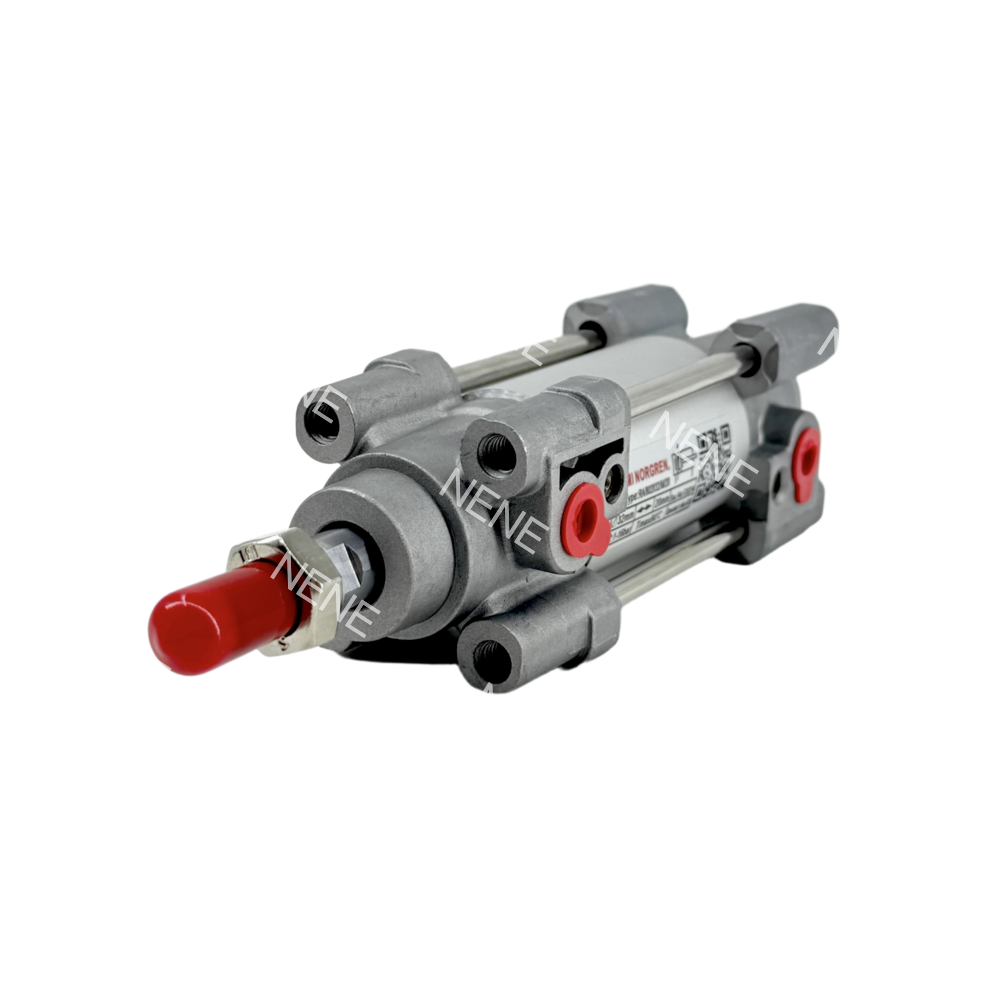

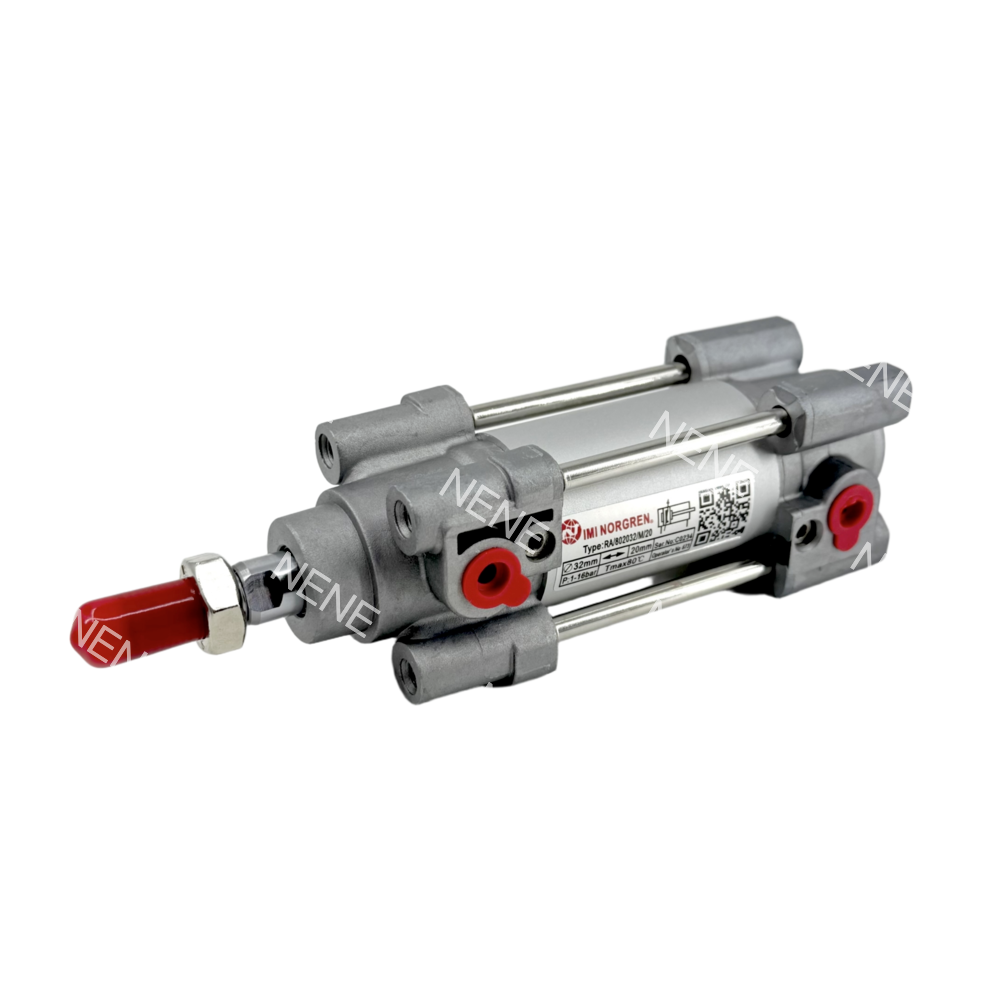

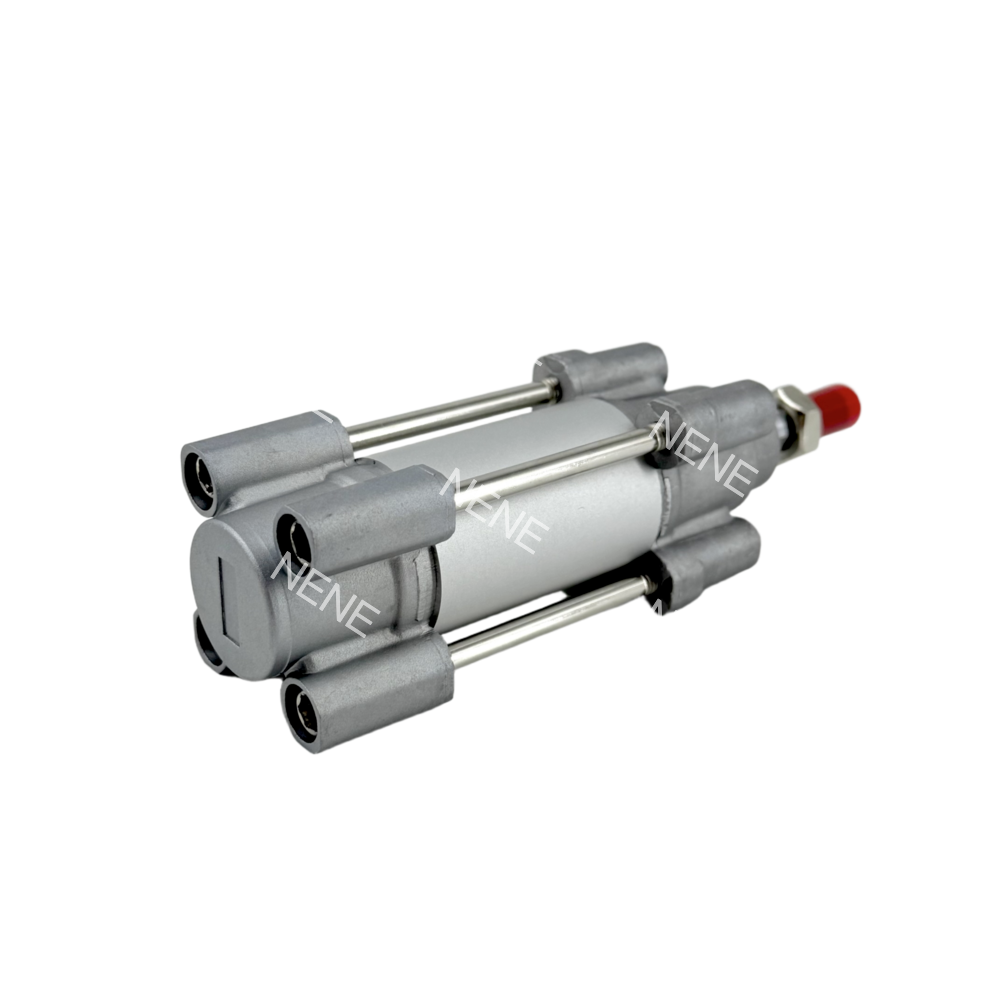

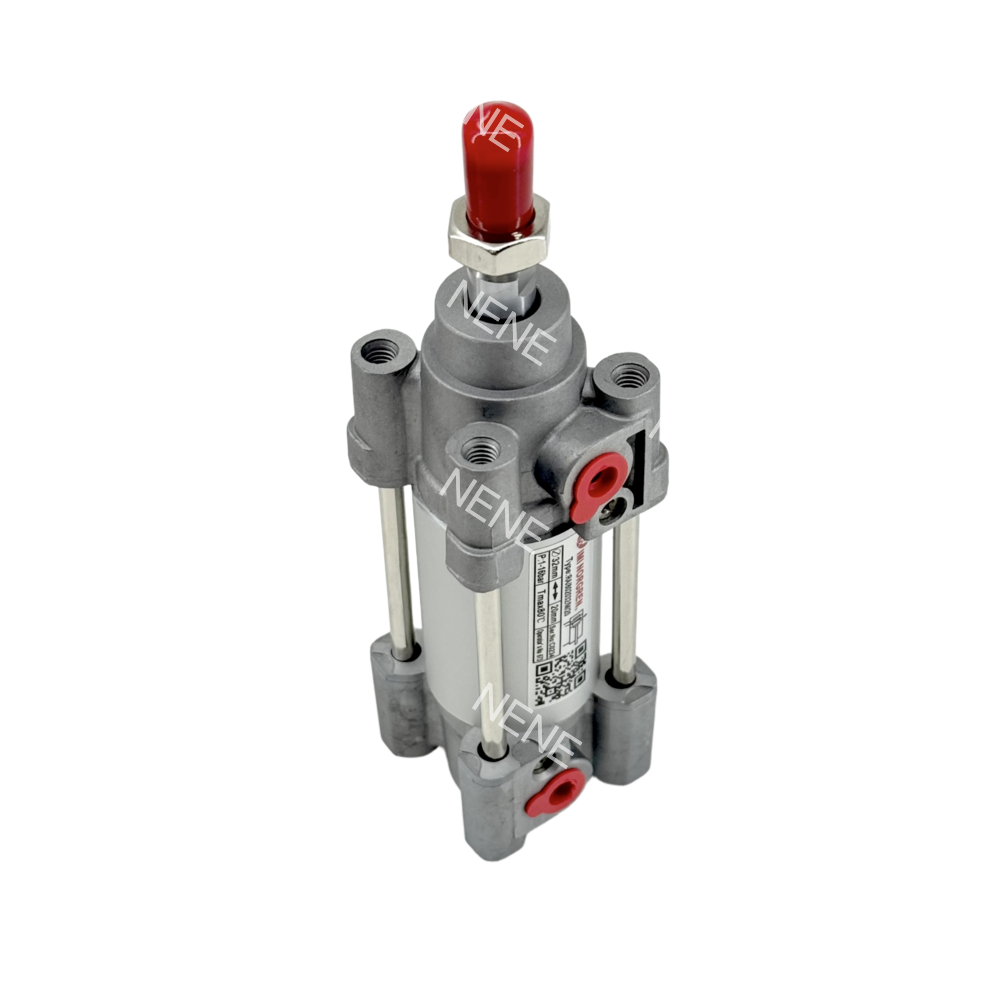

The NORGREN RA/8020 series is a high-performance, compact double-acting aluminum alloy cylindrical cylinder. This series is specially designed to meet the needs of industrial automation applications that demand dependable linear motion within confined spaces. Renowned for its exceptional versatility, durability, and outstanding value, the NORGREN RA/8020 series stands out as a top choice in its class.
Features:
Compact & Powerful: Short-stroke design, offering high force in a small space.
Flexible Mounting: Multiple mounting options (foot, front flange, pivot) for easy integration.
Reliable Performance: High-quality seals and low-friction construction ensure long service life and smooth operation.
Adjustable Cushioning: Built-in adjustable cushions at both ends absorb impact and reduce noise.
Rich Options: Available with magnetic piston (for position sensing) and various bore sizes/rod ends.
| Medium | Compressed air |
| Operating Temperature | -20 ... 80 °C, -4 ... 176 °F |
| Operating Pressure | 1 ... 16 bar, 14 ... 232 psi |
| Standard | ISO 15552 |
| Port Size | G1/4 |
| Cylinder diameter | 50 mm |
| Stroke Length | 25 mm |
| Operation | Double acting |
| Cushioning | Adaptive cushioning system (ACS) |
| Magnetic/Non-magnetic | Magnetic |
| Theoretical Force | 1178 N |
| Materials - Barrel | Anodised aluminium |
| Materials - Piston Head Seals | Polyurethane |
| Materials - Piston Rod | Stainless steel (martensitic) |
| Dimensions - Height | 66 mm |
| Dimensions - Length | 78 mm |
| Dimensions - Width | 66 mm |
| Weight | 0.61 kg |
| Country of Origin | Czechia, Germany, Australia, India |
| Range | RA/802000/M |
| Series | ISOLine |
| Brand | IMI Norgren |
Applications:
Packaging, Electronics, and Semiconductor Machinery Solutions: Our company offers specialized equipment for precise positioning, clamping, and ejecting in the packaging, electronics, and semiconductor industries. We provide high-quality machinery tailored to meet the unique needs of these sectors.
Small Automation Workstations and Robotic EOAT: We design and manufacture small automation workstations along with robotic end-of-arm tooling (EOAT) to enhance efficiency and productivity. Our solutions are designed to streamline processes and improve operations in various industrial applications.
Medical Devices and Analytical Instruments: Our expertise extends to the development of advanced machinery for medical devices and analytical instruments, ensuring precise actuation and accurate performance. We prioritize precision and reliability to meet the stringent requirements of the healthcare and analytical sectors.
Light-duty Applications in Printing and Textile Machinery: We cater to light-duty, high-cycle applications in the printing and textile machinery industry, offering solutions that are efficient and durable. Our machinery is designed to withstand continuous operation and deliver consistent results for optimal performance.
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: This high-quality piston pneumatic cylinder is designed for smooth and efficient operation in various industrial applications.
Package Contents: - 1 Piston Pneumatic Cylinder - User Manual
Package Dimensions: 12in x 4in x 4in
Shipping Information: - Shipping Method: Standard Shipping - Shipping Time: 3-5 business days - Shipping Cost: $10.00
